Butterfly Needle Assembly Machine - Butterfly Needle from production to assembly

What is a butterfly needle?

The butterfly needle is a safe intravenous infusion needle for clinical puncture and infusion. The purpose of the invention is to provide a butterfly-shaped intravenous infusion needle with a simple structure and the needle can be retracted into the needle sheath when discarded to avoid infection.

The safe butterfly-shaped intravenous infusion needle is composed of a needle with a butterfly handle and a safety shell. The safety shell has a hollow structure. The inner bottom of the safety shell and the tail of the needle with butterfly handle are respectively provided with mutually matching buckles and The card slot, after the infusion needle is discarded, the needle is pulled back through the butterfly-shaped wing, so that the needle can be retracted into the safety shell and locked by the buckle structure to prevent iatrogenic infections, thereby causing potential safety hazards.

The front part of the butterfly-shaped infusion needle base is open, the head has no annular protection ring, the middle part is provided with a clamping bar, and the needle tail of the butterfly handle is provided with a boss that matches the clamping bar of the base.

Composition of Butterfly needle

Butterfly needle consists of catheter assembly, needle tube assembly and infusion heads with different functions; the accessories of the catheter assembly include sleeve, rivet, sleeve seat, sleeve seat with interface, isolation plug, butterfly wing, extension tube, extension tube connector, Sheath, end cap.

The needle tube assembly accessories include a puncture needle, a needle seat, and a vent connector.

The infusion connector accessories have heparin caps, needleless connectors, and positive pressure needleless connectors.

Butterfly Needle Assembly Machine Technical Proposal

1: Machine Name: Butterfly Needle Set Automation Assembly Line

2: Parts for Assembly: Butterfly seat. Needle and cover all together three parts will be assembled to be one unity by this machine automatically.

3: Assembly Efficiency: 8000pcs/hour;  pass rate: 99% more

4: Machine voltage: three phases 380V-440V; air source: 0.4-0.7MPA

5: Total power:16KW

6: Worker needed: two person

7.Electric control: touch screen, PLC control

8.Air inlet components: cylinder drive, fiber optic sensor

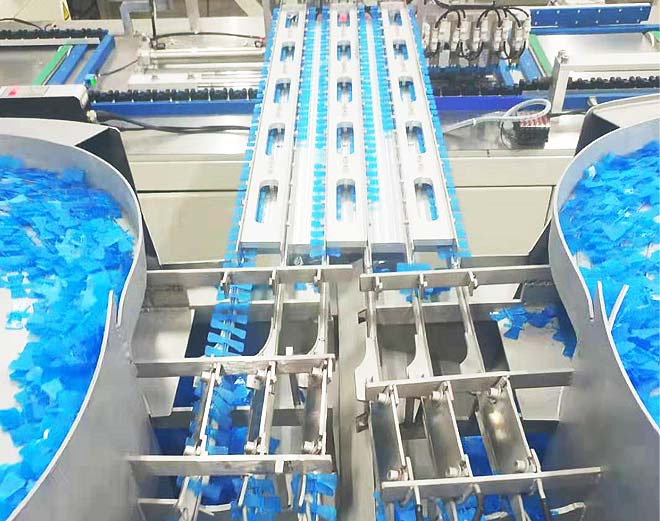

9.Vibrator automatic feeding

10.The sliding part of the structure is made of high-speed steel, which has stable wear resistance and good fixation.

11.With alarm prompt

12.Machine description:

This machine is made up of the following parts: machine shelf, Vibration plate feeders, manipulator picking-up device, positioning and assembly device, testing device, working plat, air fans and electrical control devices; This machine is controlled by PLC, feed and assembly all the three parts to be one unity; with full automation feeding and testing process for every one step.

Features of Butterfly needle assembly machine

1.Butterfly needle assembly machine is designed and manufactured for the syringe assembly industry

2. Automatic feeding, automatic assembly is completed

3. Automatically detect, automatically start when there is material, and automatically stop running when there is no material

4. Automatic counting, set output

5. Using touch screen, intuitive interface, simple and safe operation

6. Abnormal shutdown, automatic alarm for reporting abnormal information, etc.

Butterfly needle assembly machine Parts Brand:

Cylinder parts:SMC (Japan)

INDEX : SANYKO(Japan)

Servo Motor:Panasonic(Japan)

Ball Screw guide line:HINWIN (Taiwan)

PLC:Mitsubishi (Japan)

Fiber Sensor: Panasonic  (Japan)

Light Sensor:SICK(Germany)

Packaging Information

Dimension: 11,000mmX2200mmX2200mm

Gross weight：20,000 / kg

Package: compound wooden case

Beijiashen automotic assembly machine manufacturers can design and customize for customers to meet the technical requirements of different products to a greater extent. If you have any questions，pls contact us.

quote now

After Sale Service Terms:

1) In 12 months from the day of shipment, under the correct operation, the disable caused by the quality of the machine, promise to offer free repair, parts change and technical service. And track with the manufacture process questions;

2) After 12 months, we also responsible for the repair works and technical services; But the cost of the material and service will be paid.

3) Installation and calibrate in aboard customer's factory: If this service needed for oversea customer, the customer should pay the all the air-plane and all other cost for our engineer be at aboard;
