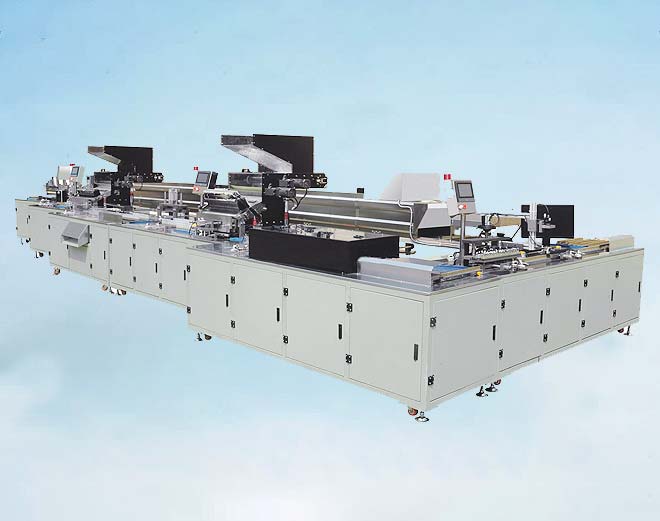

The syringe assembly machine is a new type of medical automatic assembly equipment, suitable for the production and assembly of disposable syringes. Its appearance realizes the automatic assembly of syringes, effectively reduces labor costs, and greatly shortens the wasted time, making the production of disposable syringes more efficient.

Currently, disposable syringes have been widely used in medical systems. When using a disposable syringe, the syringe does not need to be sterilized, and the user only needs to tear off the outer packaging. Therefore, it has the advantages of convenient use, safety and hygiene, and is loved by the majority of users. However, this requires high hygiene requirements for the production of disposable syringes.

Existing disposable syringes are usually composed of four parts: injection rod, syringe, rubber stopper and needle. For the assembly of these four parts, for the assembly of the four parts, the traditional method is manual operation. The biggest disadvantage is that the syringe is easy to adhere to germs, resulting in unqualified product hygiene. At the same time, the assembly speed of manual operation is also low, so many people start to design and research the automatic syringe assembly machine.

In the currently designed and developed automatic syringe assembly machine, the assembly of the syringe accessories is realized by the principle of pneumatics. In other words, it relies on the piston in the cylinder to fix the syringe fittings and assembles through the reciprocating movement of the piston. The pneumatic assembly device has a complicated structure and the cost of the assembly machine is high; at the same time, the noise of the piston in the cylinder is very high during the movement, the assembly machine runs unevenly and the assembly speed is slow.

Features of automatic syringe assembly machine

The rack, the turntable assembly mounted on the rack, the motor and gear transmission assembly installed under the rack, the turntable assembly includes five turntables, the gear transmission assembly includes five gears, one turntable and one gear are connected together, The first turntable and the second turntable are cut outside, the second turntable and the third turntable are cut outside, the third turntable and the fourth turntable are cut outside, and the fourth and fifth turntables are cut outside. The motor-driven gear drives the turntable to rotate.

The first turntable includes the main shaft, the bearing and bearing seat assembly for installing the main shaft, the cam seat fixed on the base of the frame, the piston rod holding seat fixed on the main shaft, the guide shaft movably installed on the piston rod holding seat, and The assembly module and the deep groove ball bearing fixedly connected by the guide shaft, the bearing and the bearing seat assembly are fixed on the frame base, the deep groove ball bearing is placed on the cam seat, and the cam seat is provided with a raised work Section, the piston rod clamping seat and the edge of the outer ring of the assembly module are provided with a plurality of guide holes.

The second turntable includes the main shaft, the bearing to install the main shaft, the bearing seat to install the bearing, the guide wheel fixed on the bearing seat, the middle plate and the bottom plate fixed on the main shaft, the deep groove ball bearing placed on the guide wheel, and the thimble rod. , The thimble plate where the thimble rod is installed, one end is fixed on the thimble plate and the other end is a guide shaft connected with the deep groove ball bearing, the bearing seat is installed on the base of the frame, the middle plate is movably connected with the guide shaft, and the guide A concave working section is arranged on the wheel, and a plurality of guide holes are arranged at the outer ring edges of the middle disc and the lower disc.

The third turntable includes a main shaft, a bearing, a thimble rod, a thimble plate, a thimble guide plate, a guide shaft, a guide shaft bearing, a deep groove ball bearing, a deep groove ball bearing seat, a guide wheel, a middle plate, and a bottom plate. The thimble bar of the second turntable is longer than the thimble bar of the second turntable.

The fourth turntable includes the main shaft, the bearing on which the main shaft is installed, the bearing seat on which the bearing is installed, the guide wheel fixed on the bearing seat, the upper assembly module fixed on the main shaft, the guide shaft passing through the upper assembly module, and the guide shaft fixed on the guide shaft. The lower assembly module, the deep groove ball bearing connected with the guide shaft, the bearing seat is installed on the base of the frame, the deep groove ball bearing is placed on the guide wheel, and the guide wheel is provided with a raised working section, A plurality of guide holes are provided at the outer ring edges of the upper assembly module and the lower assembly module.

The fifth turntable includes a main shaft, a main shaft on which a bearing is installed, an assembly module installed on the main shaft, and an obliquely downward pressing plate arranged on the assembly module, and the bearing is installed on the frame base.
